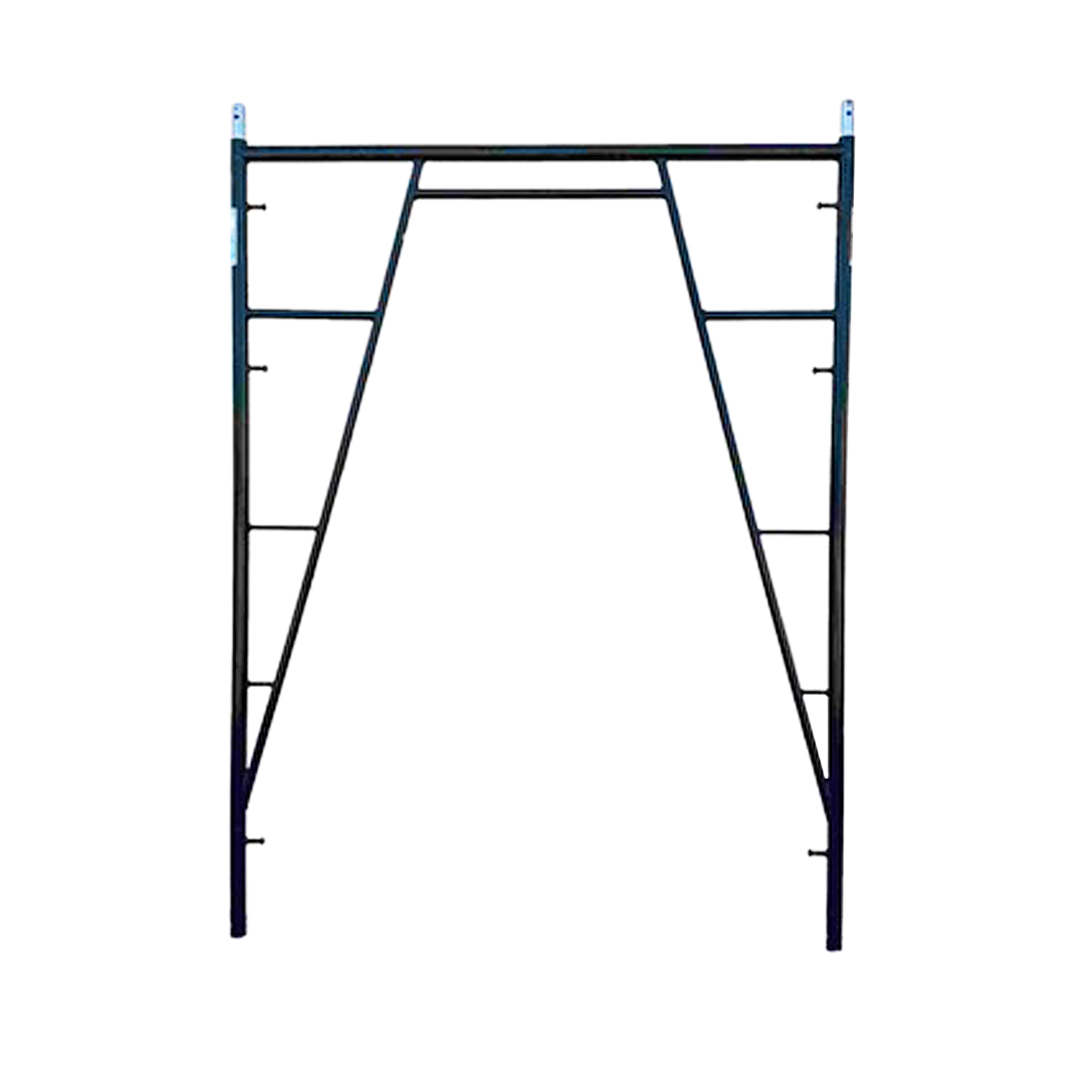

5′ x 6’8″ Snap-On Walk-Thru Scaffold Frame

5′ x 6’8″ Snap-On Walk-Thru Scaffold Frame

The 5′ x 6’8″ Snap-On Walk-Thru Scaffold Frame from USA Scaffolding is a professional-grade masonry-style frame with snap-on cross brace connections — no pins needed for braces, they simply snap into place. The open walk-thru design allows continuous access along the work platform. Built from high-quality, non-recycled steel and powder-coated for long-lasting durability. Snap-On scaffolding is commonly used by stucco contractors, brick masons, and stone masons.

The 5′ width provides ample workspace for materials, wheelbarrows, and crew, making it ideal for long and continuous work platforms on masonry jobsites.

Specifications

• Dimensions: 5′ wide x 6’8″ tall
• Shipping Dimensions: 84″ L x 60″ W x 2″ H
• Frame Style: Snap-On
• Frame Type: Walk-Thru — open middle section with no center ladder rungs for easy passage
• Material: High grade Q-235 steel (virgin, non-recycled)
• Finish: Powder Coat Blue
• Weight: 44.17 lbs

Applications

The 5′ x 6’8″ Snap-On walk-thru frame is ideal for masonry construction, stucco application, brick laying, and stone work. The 5′ width provides a stable, spacious work platform. The walk-thru opening allows workers and materials to pass through the frame without navigating ladder rungs, improving efficiency on the jobsite.

This frame uses snap-on style cross braces (7′ or 10′ Snap-On braces).

Also Available as a Complete Set

This frame is also available as a complete 5′ x 6’8″ Snap-On Walk-Thru Masonry Set that includes:

• 2 — Snap-On Walk-Thru Scaffold Frames (SOWT568)
• 2 — Cross Braces (7′ or 10′ Snap-On braces)
• 4 — Coupling Pins for stacking

At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. Our scaffolding frames are heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. We also make our frames from virgin steel and not recycled steel like some of our low cost competitors do. Our scaffolding is designed to hold up on commercial projects, withstand large weight loads and hold up over the course of many jobs.

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame
