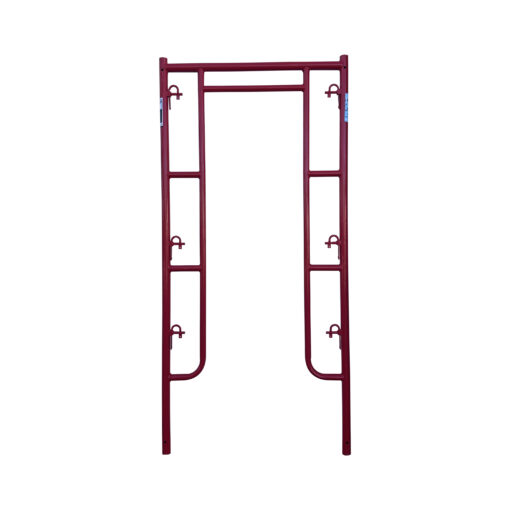

3′ x 6’7″ W-Style Walk-Thru Scaffold Frame

3′ x 6’7″ W-Style Walk-Thru Scaffold Frame

The 3′ x 6’7″ W-Style Walk-Thru Scaffold Frame from USA Scaffolding is a Waco-style (W-Style) frame engineered for masonry and construction applications. The open walk-thru design allows continuous access along the work platform. Built from high-quality, non-recycled steel and powder-coated for long-lasting durability.

Specifications

• Dimensions: 3′ wide x 6’7″ tall
• Shipping Dimensions: 79″ L x 36″ W x 1.6″ H
• Frame Style: Waco (W-Style)
• Frame Type: Walk-Thru — open middle section with no center ladder rungs for easy passage
• Frame Leg: 1-5/8″
• Wall Thickness: 0.090″
• Lock Type: Candy Cane
• Finish: Powder Coat Red
• Weight: 43.19 lbs

Applications

The 3′ width is ideal for narrow wall sections and specialized masonry applications. The walk-thru opening allows workers and materials to pass through the frame without navigating ladder rungs.

This frame requires 7′ x 4′ or 10′ x 4′ cross braces (CB7X4 or CB10X4).

Also Available as a Complete Set

This frame is also available as a complete 3′ x 6’7″ W-Style Walk-Thru Scaffold Frame Set that includes:

• 2 — Waco Scaffold Frames (WT36.7-3)
• 2 — Cross Braces
• 4 — Coupling Pins
• 4 — Spring Clips

At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. Our scaffolding frames are heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. We also make our frames from virgin steel and not recycled steel like some of our low cost competitors do. Our scaffolding is designed to hold up on commercial projects, withstand large weight loads and hold up over the course of many jobs.

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame
