Description

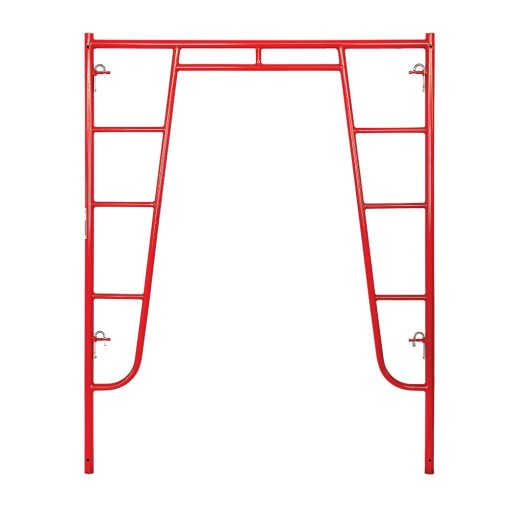

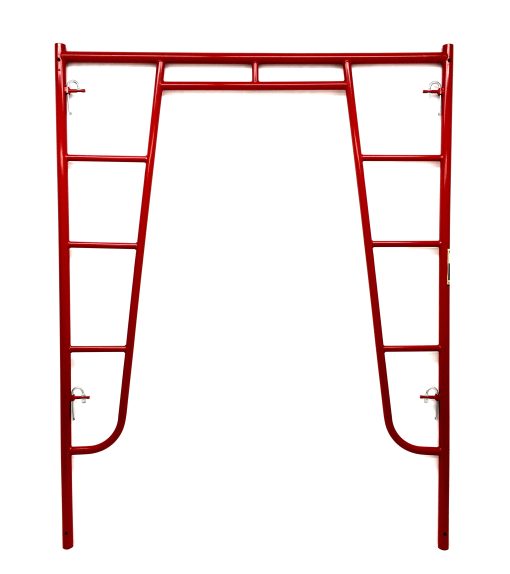

5’ x 6’7″ W-Style Walk-Thru Scaffold Frame

This 5ftx6ft7in walk-thru scaffold frame is made from high-quality (not recycled) steel and is strength-tested to ensure quality. This Waco-style heavy duty scaffold frame and is great for masonry work and applications where access across a long wall is needed. Build the perfect scaffold work platform using this 5ftx6ft7in walk-thru scaffold frame, our scaffold cross braces, and the proper scaffold frame coupling pins.

Specifications:

Width: 5′

Height: 6’7″

Weight: 45.56 lbs

Frame leg diameter: 1-5/8″

Wall thickness: 0.090″

Top lock: 7″

Lock type: Candy Cane

Drilled hole: 90 Degrees

Finish: Powder Coat Red

High grade Q-235 steel

At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. These scaffolding frames are heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. We also make our frames from virgin steel and not recycled steel like some of our low cost competitors do. This scaffolding is designed to hold up on commercial projects. These scaffold frames can withstand large weight loads and hold up over the course of many jobs.

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame
