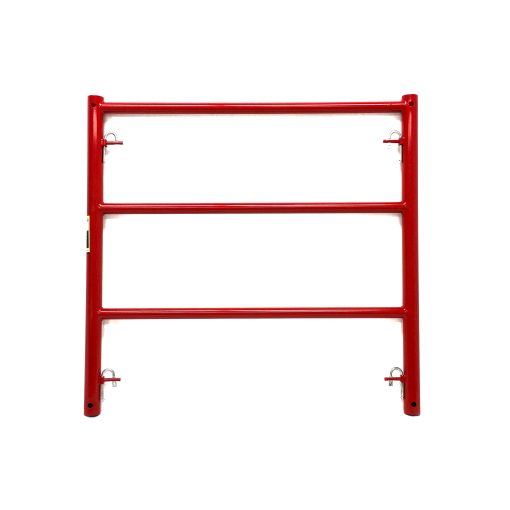

3′ x 3’1″ W-Style Single Ladder Scaffold Frame

3′ x 3’1″ W-Style Single Ladder Scaffold Frame

The 3′ x 3’1″ W-Style Single Ladder Scaffold Frame from USA Scaffolding is a “half high” Waco-style (W-Style) ladder frame with one ladder rung. All scaffold frames between 2′ and 4′ in height are often referred to as “half high” scaffold frames. Built from high-quality, non-recycled steel and powder-coated for long-lasting durability.

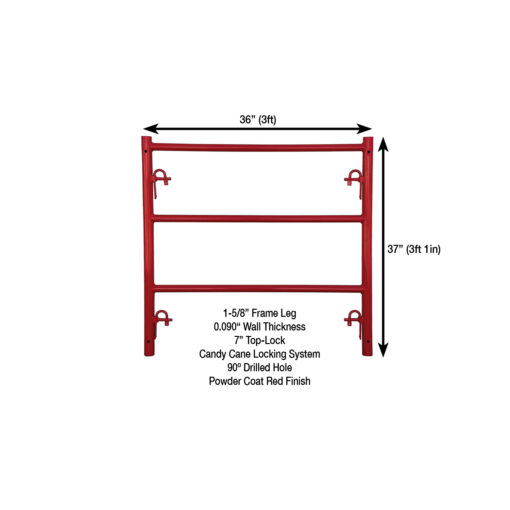

Specifications

• Dimensions: 3′ wide x 3’1″ tall
• Shipping Dimensions: 37″ L x 36″ W x 2″ H
• Frame Style: Waco (W-Style)
• Frame Type: Single Ladder — one row of ladder rungs (“half high” frame)
• Frame Leg: 1″
• Wall Thickness: 0.09″
• Lock Type: Candy Cane
• Finish: Powder Coat Red
• Weight: 20.50 lbs

Applications

The 3′ x 3’1″ “half high” frame is ideal for low-height work and specialized applications.

This “half high” frame requires a 7′ x 1′ or 10′ x 1′ cross brace (CB7X1 or CB10X1).

At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. Our scaffolding frames are heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. We also make our frames from virgin steel and not recycled steel like some of our low cost competitors do. Our scaffolding is designed to hold up on commercial projects, withstand large weight loads and hold up over the course of many jobs.

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame
