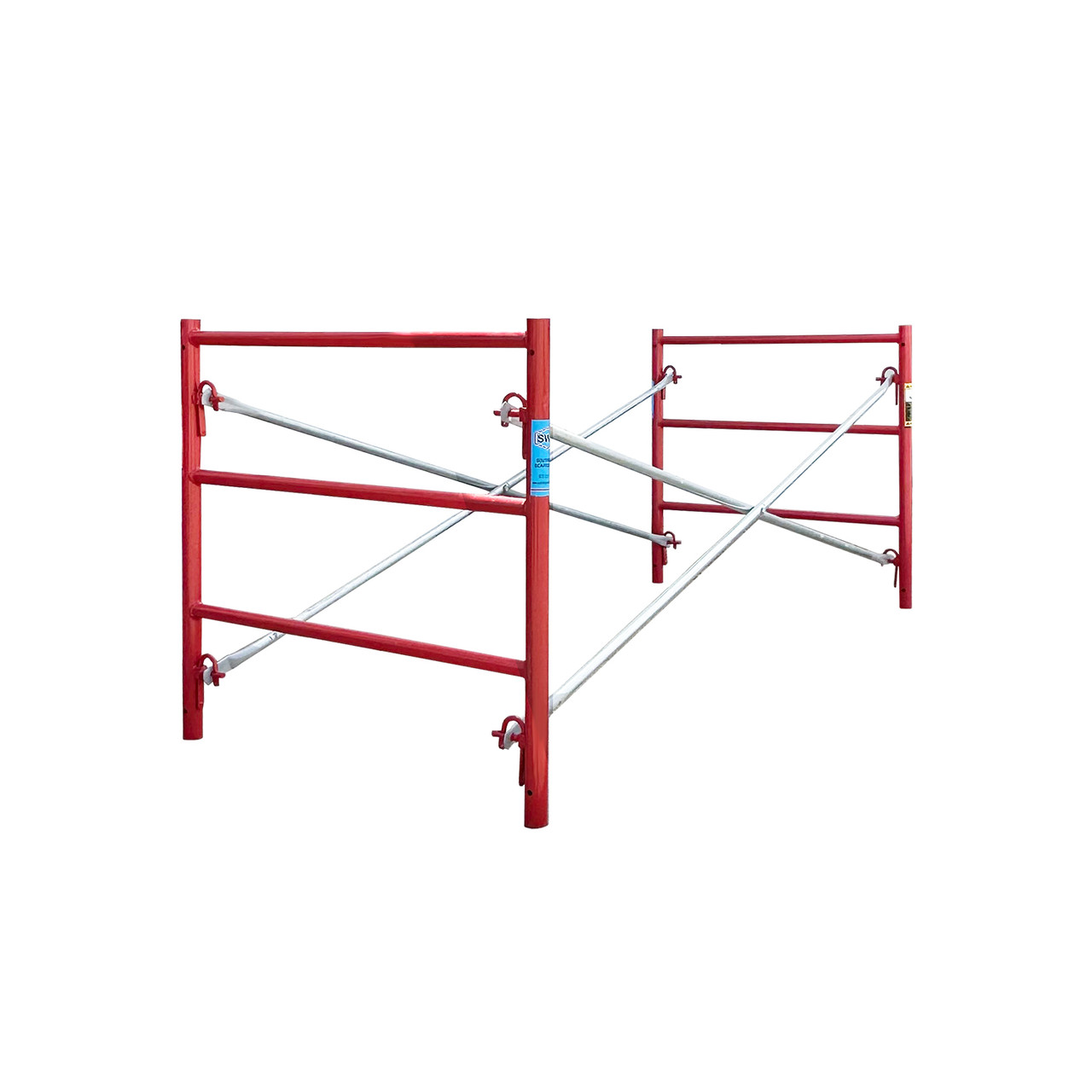

3′ x 3’1″ W-Style Single Ladder Scaffold Frame Set

Set of Scaffolding – Waco Style 3ft x 3ft 1in

Half high frame set that will stack with our full size LF56.7 frames. These sets are used to reach a specific height with your scaffolding platform or to stay underneath an overhang or ceiling.

The footprint for this Set of Scaffolding | 3ft X 3ft 1in | Waco Style Ladder Frame is 3′ wide by 7′ deep. The work platform for this set is 3’1″ high and provides a versatile workspace using the multiple platform locations of the ladder frames.

3′ x 3’1″ Waco Style Ladder Frame Set Includes:

• 2 – 3′ x 3’1″ W-Style Single Ladder Frames (LF33.1)
• 2 – Cross braces 7ft x 2ft
• 4 – 7″ Coupling Pins (CP7-13/8-NC) – 1-3/8″ diameter, no collar

Total Product Weight: 66.54 Lbs.

Waco Style Frame Specifications

• Frame leg: 1.25″
• Wall thickness: 0.09″
• Top Lock: 7″
• Lock Type: Candy Cane
• Drilled Hole: 90 degrees
• Finish: Powder Coat Red

At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. Our scaffolding is designed for professional performance, ensuring these frames withstand large weight loads and endure years of jobsite use.

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products at https://www.osha.gov/etools/scaffolding/supported/frame
