Pinnacle Platform Ladder | Louisville Type IAA | Fiberglass | FXP1800HD Series

Description

Pinnacle Platform Ladder | Louisville Type IAA | Fiberglass | FXP1800HD Series

The Louisville FXP1800HD Series Pinnacle Platform step ladder has a 375lb load capacity, rated ANSI Type IAA. It features a 36″ extended handrail and a 50% larger platform area for added comfort and safety. This ladder is equipped with the innovative ProTop with multiple tool slots and magnet, SHOX impact absorption system, Raptor boots with non-marring bonded tread mechanically fastened to the upper boot to create a secure slip-resistant footing, wide back braces, and double-rivet step construction. The Louisville FXP1800HD Pinnacle Platform ladder meets or exceeds the safety standards set by ANSI and OSHA.

FEATURES

• 36″ Tall Extended Handrail From Top To Platform
• 50% Larger Platform Area For Added Comfort And Safety
• ProTop With Multiple Tool Slots And Magnet
• Raptor Slip-resistant Boot
• Shox Impact Absorption System
• Double-Rivet Step Construction
• Wide Back Braces

Comes in 5 Different Sizes:

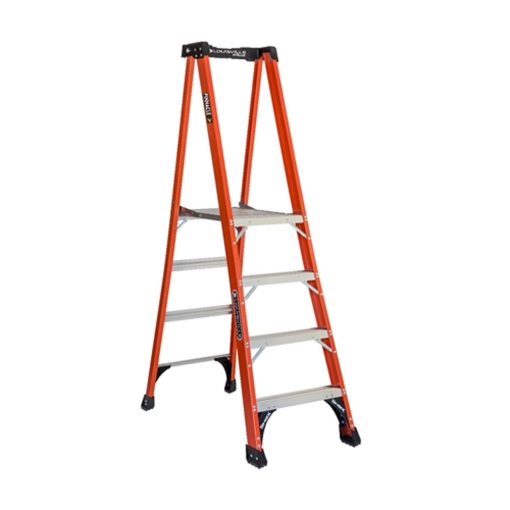

• 4ft (USA-FXP1804HD) – Dimensions: 84in L x 25in W x 10in D – Weight: 27Lbs
• 6ft (USA-FXP1806HD) – Dimensions: 112in L x 28in W x 10in D – Weight: 36Lbs

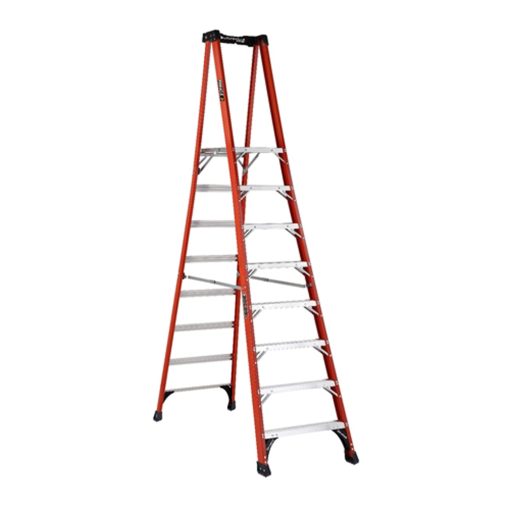

• 8ft (USA-FXP1808HD) – Dimensions: 136in L x 31in W x 10in D – Weight: 47Lbs

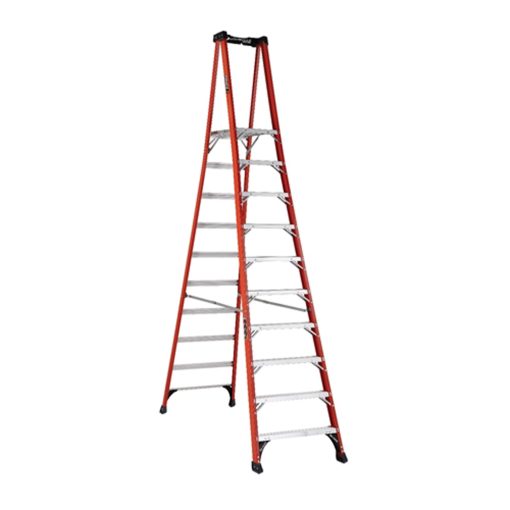

• 10ft (USA-FXP1810HD) – Dimensions: 160in L x 34in W x 10in D – Weight: 65Lbs

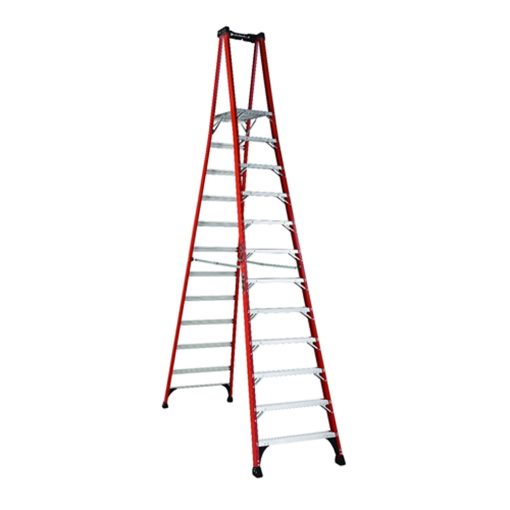

• 12ft (USA-FXP1812HD) – Dimensions: 184in L x 37in W x 10in D – Weight: 76Lbs

Learn more at Louisville Ladders: https://louisvilleladder.com/media/5051/fxp1800hd-pinnacle-flyer.pdf

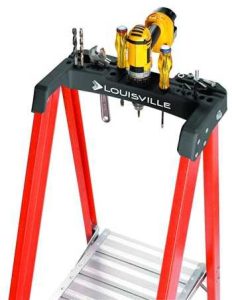

Ladder Tray Detail

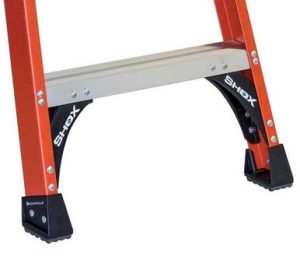

Ladder Feet Detail

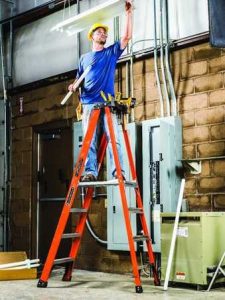

Product in Use Image
