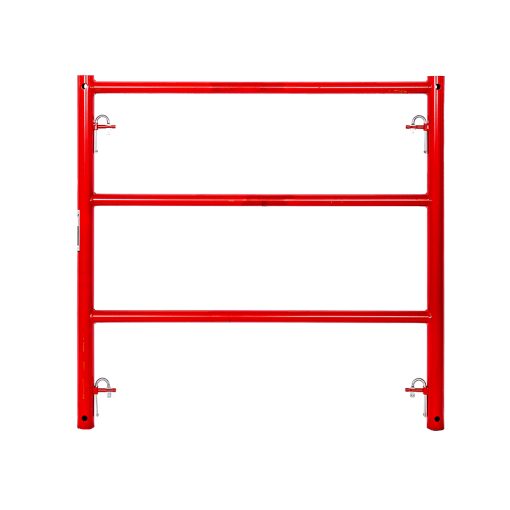

4’X4′ H.L. Concrete Shoring Frame/Shoring Jack

4’X4′ H.L. Concrete Shoring Frame/Shoring Jack

The 4’X4′ H.L. Concrete Shoring Frame/Shoring Jack is an extremely strong component perfect for any serious concrete formwork project. These shoring frames are constructed from high-grade Q-235 steel and feature thick walls. The primary feature is the immense certified load capacity; the frame can safely withstand a 10,000 lb weight load. Therefore, these shoring frames are highly versatile and ideal for all kinds of concrete formwork and structural support.

This 4ft x 4ft concrete shoring frame uses a robust design to handle extreme pressure. The substantial 0.156″ wall thickness and 2.375″ O.D. tube diameter maximize stability and strength. The red powder coat finish resists corrosion. Furthermore, the specialized Candy Cane lock style secures bracing efficiently. You can use this frame with Shoring Connectors and Leveling Jacks. Consequently, the durable 4ft x 4ft concrete shoring frame is designed to hold up on commercial projects, withstand massive weight loads, and perform reliably over many jobs.

Specifications

• Weight Load: 10,000 lbs (Certified)
• Dimensions: 4′ Wide x 4′ High
• Material: High-grade Q-235 steel
• Wall Thickness: 0.156″
• Tube Diameter: 2.375″ O.D.
• Lock Style: Candy Cane (First Lock 7″ from top)
• Finish: Powder Coat Red
