Description

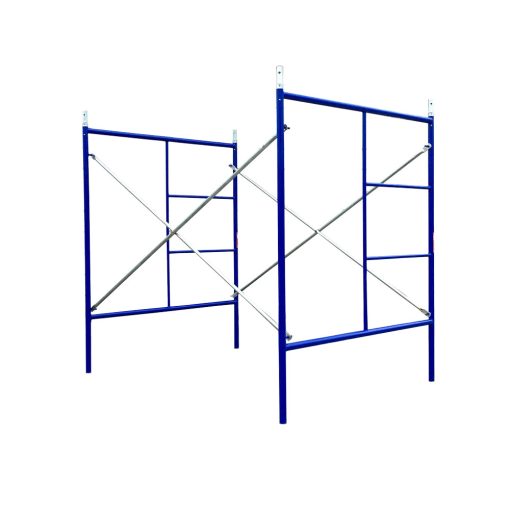

5’X6’4″ S-Style Double Ladder Scaffold Frame Set

Safeway-Style double ladder scaffold frame set has two ladder rungs. This frame set includes 7ft Scaffold Tube Cross Braces, Coupling Pins and Spring Clips.

Each Set Includes the Following Items:

2 USA-432B8 Scaffolding Frames

2 USA-303 Cross Braces

4 USA-104 Coupling Pins

4 USA-113 Spring Clips

Specifications:

Width: 5′

Height: 6’4″

Frame Leg: 1-11/16″

Wall Thickness: 0.095″

Top Lock: 8-1/2″

Lock Type: Drop Lock

Drilled Hole: 45 degrees

Finish: Powder Coat Blue

Weight Per Set: 115.82 lbs

Frame Style: Safeway

High grade Q-235 steel

At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. These scaffolding frames are heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. We also make our frames from virgin steel and not recycled steel like some of our low cost competitors do. This scaffolding is designed to hold up on commercial projects, withstand large weight loads and hold up over the course of many jobs.

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame
