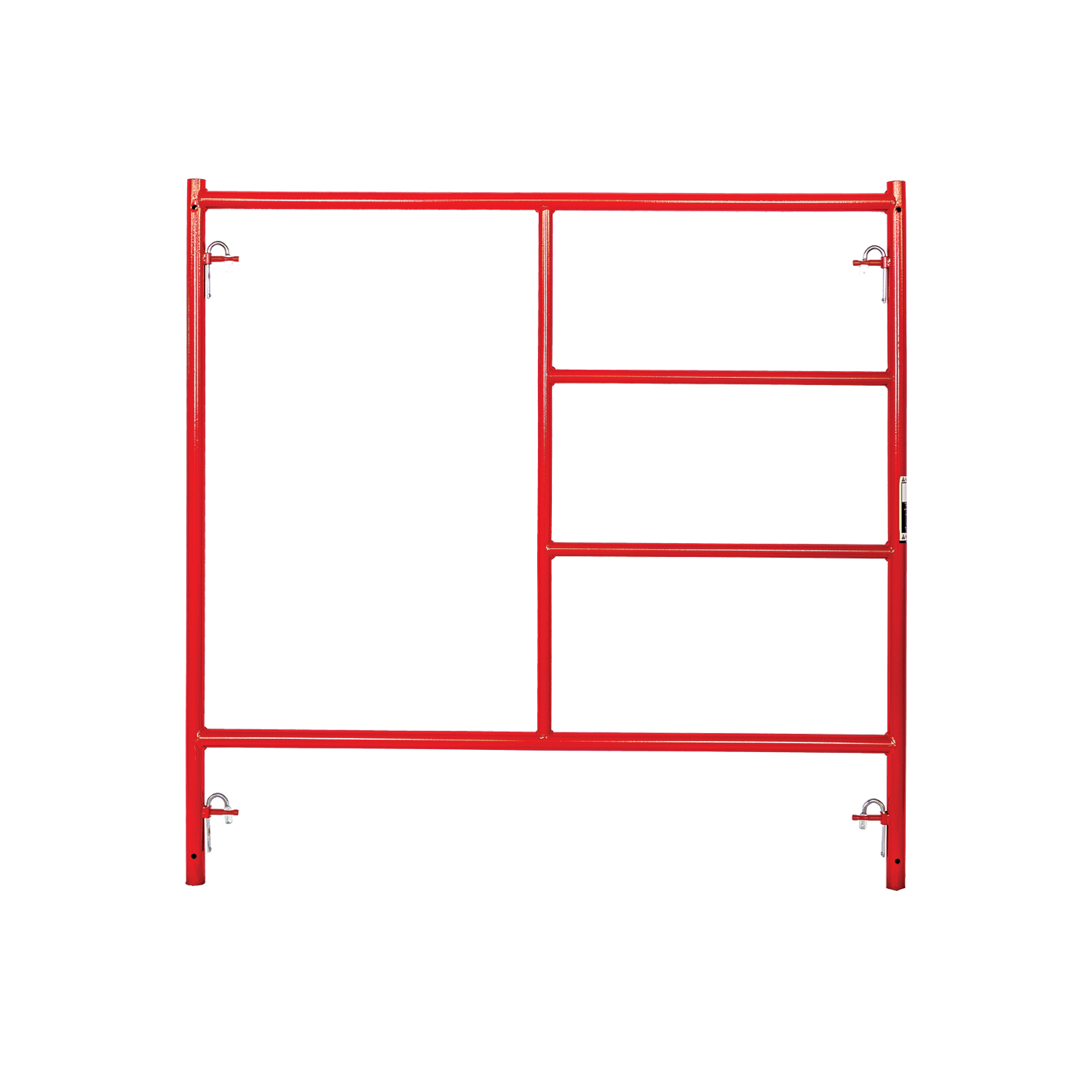

5′ x 5’1″ W-Style Double Ladder Scaffold Frame

5′ x 5’1″ W-Style Double Ladder Scaffold Frame

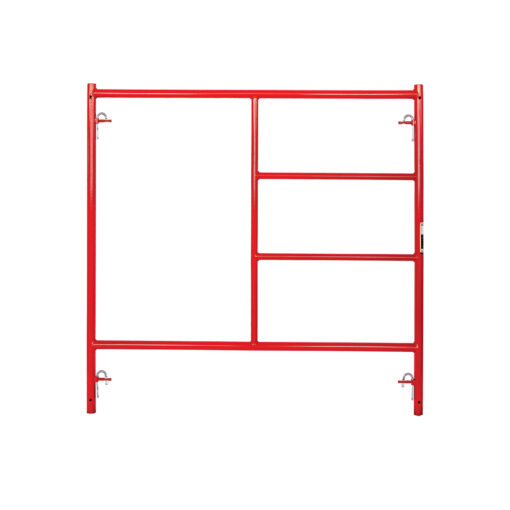

The 5′ x 5’1″ W-Style Double Ladder Scaffold Frame from USA Scaffolding is a Waco-style (W-Style) double ladder frame with ladder rungs on both sides for climbing from either direction. The dual-sided ladder access allows workers to climb the structure from either side, which is ideal for high-traffic professional construction and masonry projects. Built from high-quality, non-recycled steel with a red powder coating to resist rust and corrosion.

The 5.1-foot width provides an ample, stable workspace and allows for secure platform placement at multiple heights. This Waco Style frame is also compatible with Safeway and Bil-Jax patterns.

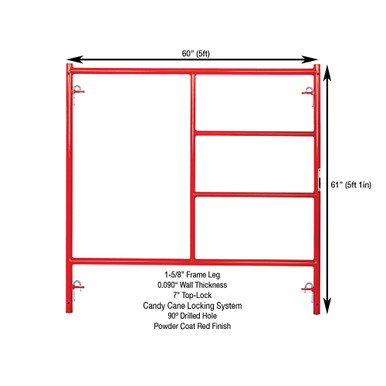

Specifications

• Dimensions: 5′ wide x 5’1″ tall
• Shipping Dimensions: 62″ L x 62″ W x 2″ H
• Frame Style: Waco (W-Style)
• Frame Type: Double Ladder — ladder rungs on both sides for dual access
• Frame Leg: 1″
• Wall Thickness: 0.09″
• Lock Type: Candy Cane
• Finish: Powder Coat Red
• Material: High grade Q-235 steel (virgin, non-recycled)
• Weight: 41.95 lbs

Applications

The 5′ x 5’1″ double ladder frame is ideal for masonry construction, stucco, plastering, and general construction where dual-sided access is needed. The double ladder design allows climbing from either side of the scaffold, making it efficient for high-traffic jobsites where workers approach from multiple directions.

This frame requires 7′ x 4′ or 10′ x 4′ cross braces (CB7X4 or CB10X4).

Also Available as a Complete Set

This frame is also available as a complete 5′ x 5’1″ W-Style Double Ladder Scaffold Frame Set that includes:

• 2 — W-Style Double Ladder Scaffold Frames (LFD55.1)
• 2 — Cross Braces (CB7X4)
• 4 — Coupling Pins (CP7-13/8-NC)
• 4 — Spring Clips (SPRINGCL)

At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. Our scaffolding frames are heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. We also make our frames from virgin steel and not recycled steel like some of our low cost competitors do. Our scaffolding is designed to hold up on commercial projects, withstand large weight loads and hold up over the course of many jobs.

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame
