42″ x 3′ S-Style Single Ladder Scaffold Frame

42″ x 3′ S-Style Single Ladder Scaffold Frame

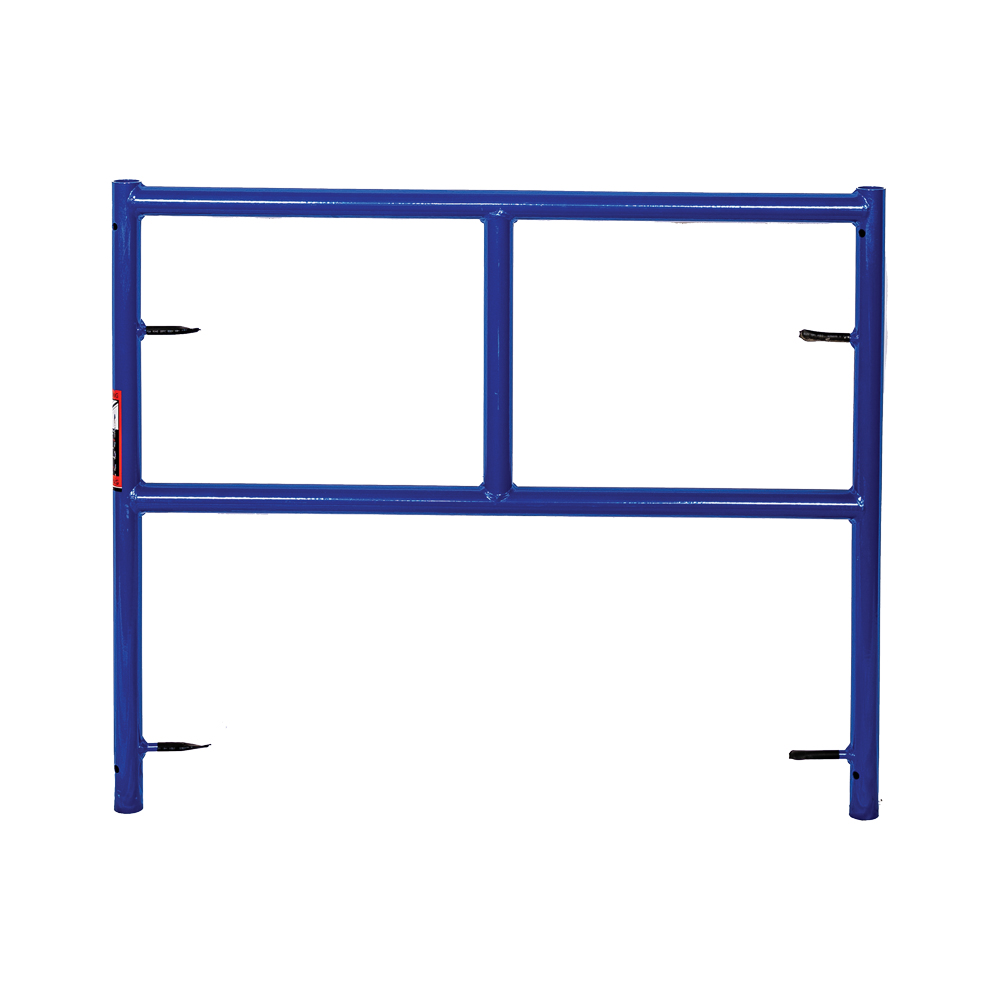

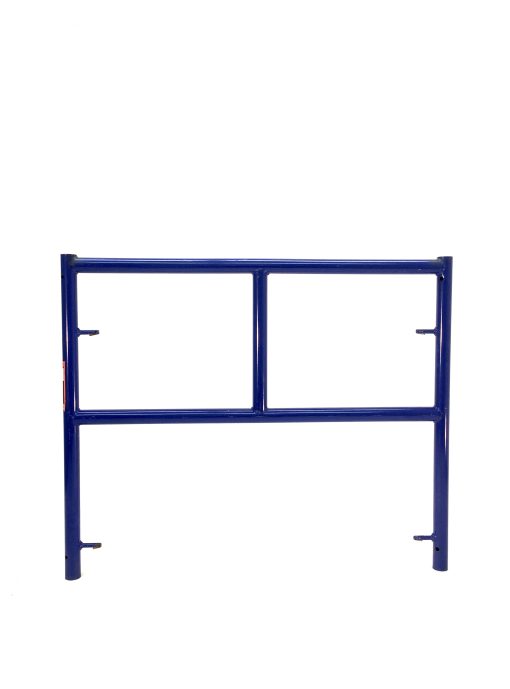

The 42″ x 3′ S-Style Single Ladder Scaffold Frame from USA Scaffolding is a “half high” Safway-style (S-Style) ladder frame with one ladder rung. All scaffold frames between 2′ and 4′ in height are often referred to as “half high” scaffold frames. Built from high-quality, non-recycled Q-235 steel and powder-coated for long-lasting durability. Safway-style scaffold frames are generally used in masonry work.

Specifications

• Dimensions: 42″ wide x 3′ tall
• Shipping Dimensions: 42″ L x 36″ W x 2″ H
• Frame Style: Safeway (S-Style)
• Frame Type: Single Ladder — one row of ladder rungs (“half high” frame)
• Frame Leg: 1-11/16″
• Wall Thickness: 0.095″
• Top Lock: 8-1/2″
• Lock Type: Drop Lock
• Drilled Hole: 45 degrees
• Finish: Powder Coat Blue
• Material: High grade Q-235 steel (virgin, non-recycled)
• Weight: 23.61 lbs

Applications

The 42″ x 3′ “half high” frame is ideal for low-height masonry work, stucco, plastering, and any application requiring access at lower heights.

This “half high” frame requires a 7′ x 1′ or 10′ x 1′ cross brace (CB7X1 or CB10X1).

Also Available as a Complete Set

This frame is also available as a complete 42″ x 3′ S-Style Single Ladder Scaffold Frame Set that includes:

• 2 — Safeway Scaffold Frames (LF423)
• 2 — Cross Braces
• 4 — Coupling Pins
• 4 — Spring Clips

At USA Scaffolding, our goal is to provide you with the highest quality product at the lowest possible price. Our scaffolding frames are heavy-duty and made with high-carbon steel so that they do not easily bend if dropped or if something runs into them. We also make our frames from virgin steel and not recycled steel like some of our low cost competitors do. Our scaffolding is designed to hold up on commercial projects, withstand large weight loads and hold up over the course of many jobs.

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame
