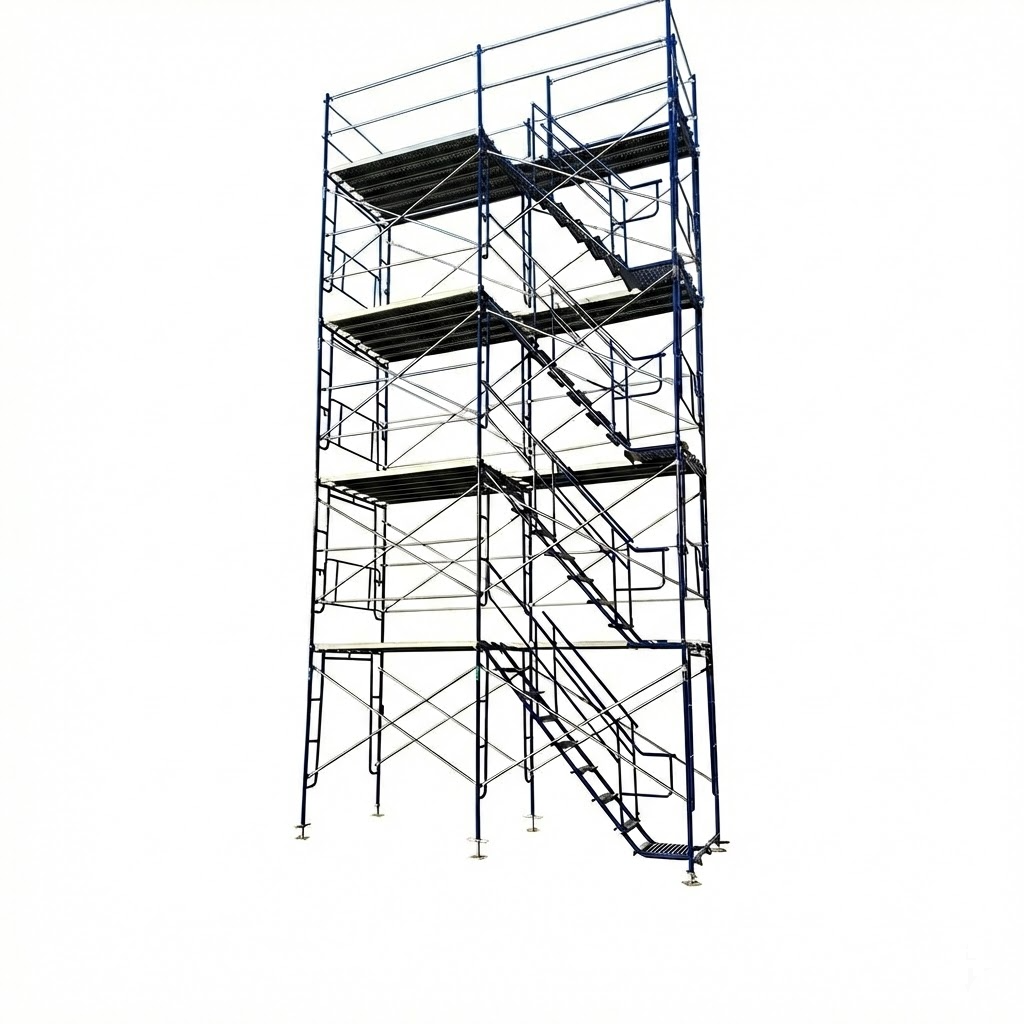

26′ Stair Tower with Landing Platform

26′ Stair Tower with Landing Platform

The 26′ Stair Tower with Landing Platform  provides a high-reach vertical solution for complex construction sites. Because this tower reaches an approximate height of 26 feet, it allows crews to access taller structures safely and efficiently. The unique landing platform design enables simultaneous access to multiple levels. Consequently, your team can move between work zones without bottlenecks, significantly increasing jobsite productivity.

In addition to its impressive reach, this tower prioritizes safety and workspace. Each level offers 32 square feet of sturdy work space using 7-foot steel planks. Furthermore, this 26-foot configuration is fully OSHA compliant when assembled correctly, providing a robust barrier against falls with included guardrails and end panels. While we also manufacture a 20-foot version of this tower, this 26-foot model includes an additional level of frames, braces, and stair units to accommodate higher work requirements.

Detailed 26-foot Stair Tower Specifications:

• Overall Height: Approximately 26 feet
• System: Walk-Thru Frame Scaffold
• Working Space: 32 square feet of platform space at each level
• Access Type: Multi-Level Access (simultaneous)
• Safety Features: OSHA compliant (guardrails, end panels, stair rails included)

Package Includes:

• 4 – ISU – Internal Stair Units
• 12 – WT56.4 – Walk-Thru Scaffold Frames – 5’X6’4″
• 16 – CB7X4 – Cross Braces – 7X4
• 36 – TP112 – Toggle Pins
• 24 – SC113 – Spring Clips
• 8 – GRPFFL-DB – Guardrail Posts
• 8 – GR7 – Guardrails – 7′
• 6 – GR5 – Guardrails – 5′
• 4 – EP5 – End Panels
• 6 – SJBP13/8 – Leveling Jacks (SJBP)
• 24 – CP13/8 – Coupling Pins
• 36 – SS70 – Steel Planks
• 1 – ISUTR – Internal Stair Unit Rail
• 1 – ISSB – Starter Bar

Stay Safe! Please refer to OSHA guidelines when erecting and using any construction scaffolding products. You can find general scaffolding safety requirements at https://www.osha.gov/etools/scaffolding/supported/frame
