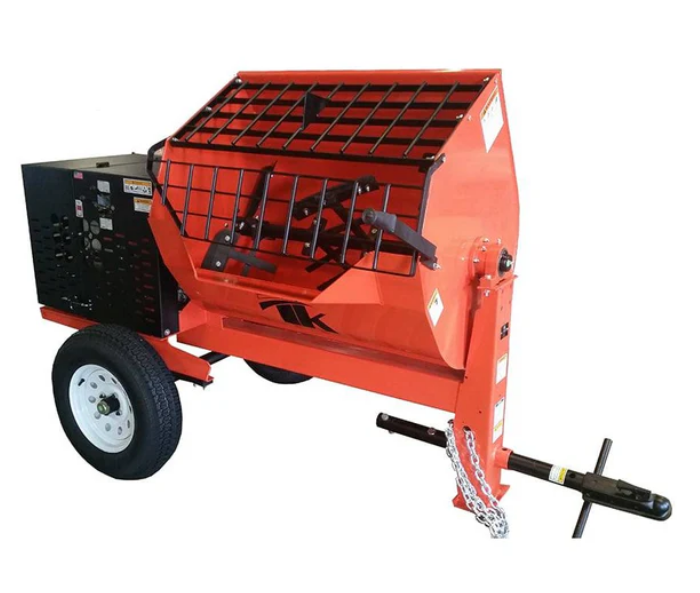

TK HM16-GH13 Hydraulic Mortar Mixer / 13 HP Honda Gas – 16 CF

TK HM16-GH13 Hydraulic Mortar Mixer / 13 HP Honda Gas – 16 CF

The TK HM16 Hydraulic Mortar Mixer is a powerful machine built to handle the highest demands of commercial and industrial job sites. It features a large batch capacity of 16 cubic feet (453 liters), efficiently processing 4 to 5.5 bags of mix. A robust Honda GX390 engine powers the unit. Therefore, the engine provides the consistent energy necessary for its powerful drive system.

The hydraulic drive and hydraulic dump action offer superior control and torque when mixing and discharging heavy loads. Consequently, this system ensures reliable performance on demanding projects. TK engineered the HM16 for extreme durability. The drum body utilizes 0.375 inch steel, with the end plates reinforced to 0.25 inch thickness. Furthermore, this heavy-duty design minimizes downtime and maximizes efficiency.

This high-capacity mixer retains excellent mobility despite its 1355 lb (615 kg) operating weight. It includes high-speed 13 x 6.5 wheels and a 98-inch (248 cm) tow pole for easy transport between job sites. Thus, the overall dimensions are 98 in long by 52 in wide by 68 in high (248 cm x 132 cm x 172 cm).

Moreover, this exceptional combination of power, durability, and mobility is why we proudly offer the TK HM16 Hydraulic Mortar Mixer at USA Scaffolding. Browse our helpful links below to see all the durable tools and machinery we offer!

Detailed Specifications

• Model: HM16
• Capacity: 16 cu. ft. (453 L)
• Batch Capacity: 4 to 5.5 Bags
• Engine: Honda GX390
• Drive & Dump Action: Hydraulic
• Drum Body Thickness: 0.375 in. (3/16-inch body and 1/4-inch ends)
• Operating Weight: 1355 lb (615 kg)
• Wheels: High-Speed 13 x 6.5
• Overall Dimensions (L x W x H): 98 in x 52 in x 68 in (248 cm x 132 cm x 172 cm)
