LADDER BRACKET 17″ WIDE – RingLock

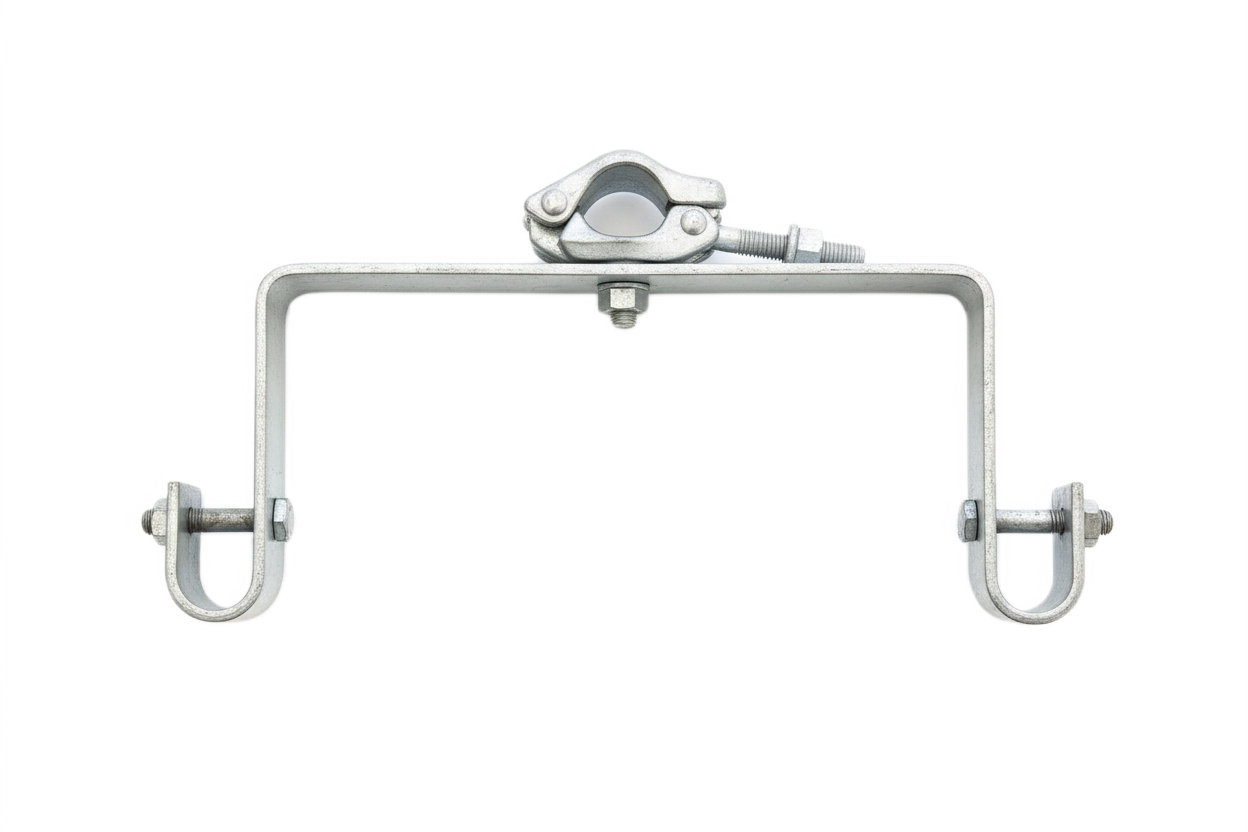

Ladder Bracket 17″ Wide RingLock

The Ladder Bracket 17″ Wide RingLock gives you a strong and secure way to attach a ladder to a RingLock scaffold system. It is made from structural steel with a hot dip galvanized finish, so it holds up well in outdoor conditions. Because the bracket connects to either vertical or horizontal scaffold tubes, it stays stable and keeps your ladder from tipping. The bracket measures 17 inches center to center and includes a heavy duty eye bolt style coupler for reliable fastening.

You can use this bracket on jobs where safe ladder access is required, and it works well for both commercial and residential projects. Since the design is simple, crews can install it quickly and keep their workflow moving. For best results, follow the recommended clamp torque settings. This bracket is also compatible with our full line of RingLock ladders, including the SL-10-17W.

Specifications

• Width: 17 inches (430 mm center to center)
• Height: 8 inches (200 mm)
• Lower drop height: 7.4 inches (187 mm)
• Material: Structural steel
• Finish: Hot dip galvanized
• Heavy duty eye bolt coupler with 22 mm flange nut
• Recommended clamp torque: 45 to 60 ft lbs (60 to 80 Nm)
