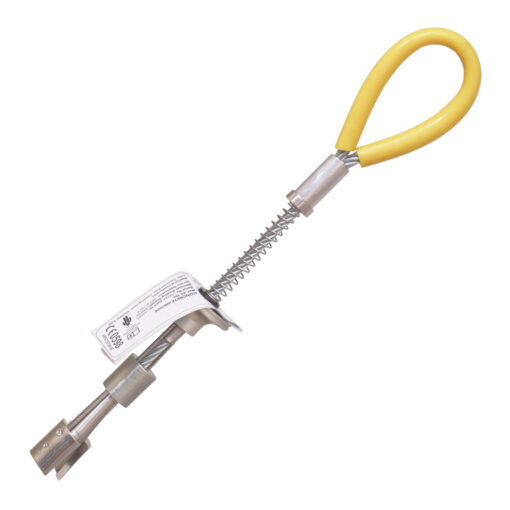

KStrong® UFA30090 – 3/4″ Removable Bolt Anchor for Concrete

KStrong® UFA30090 – 3/4″ Removable Bolt Anchor for Concrete

The KStrong UFA30090 Concrete Anchor is a crucial component of any fall protection system, engineered for reliability in concrete substrates. This anchor is both removable and reusable. Therefore, it provides contractors with an economical and versatile anchorage connector that can be relocated easily across a job site. It is designed specifically to work within a 20mm (3/4-inch) drilled hole in concrete. Furthermore, the KStrong UFA30090 meets or exceeds the rigorous standards of ANSI Z359.18-2017. Consequently, using this anchor ensures full compliance with the highest safety regulations for personal fall arrest systems.

Despite its compact and portable design, this anchor boasts a minimum breaking strength of 5000 lbs. (2268 kg). This exceptional capacity provides a secure and reliable connection point for a wide variety of fall protection applications, including lanyard and self-retracting lifeline tie-offs. In addition, the light overall weight of approximately 0.419 lbs. makes it easy for workers to carry and install multiple units. This efficiency, combined with its simple installation and removal process, makes the KStrong UFA30090 Concrete Anchor an indispensable and high-performance piece of safety equipment for workers operating at height.

Detailed Specifications

• Size: ¾ inches (20mm drilled hole)
• Minimum Breaking Strength: 5000 lbs. (2268 kg)
• Compliance: Meets or Exceeds ANSI Z359.18-2017
• Anchor Type: Removable and Reusable Bolt Anchor
• Substrate Use: Concrete
• Weight: 0.419 lbs. ± 0.011 lbs. (190 gm ± 5 gm)
