Essick 12 CUFT Mechanical Mortar Mixer

Description

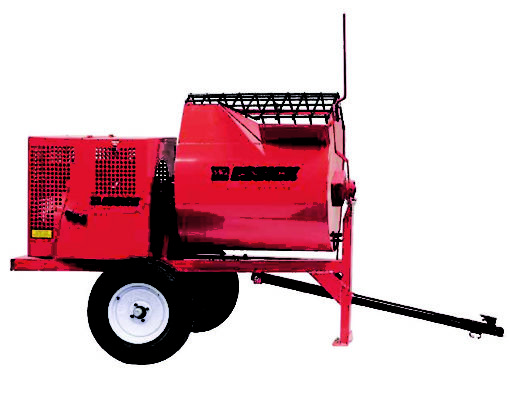

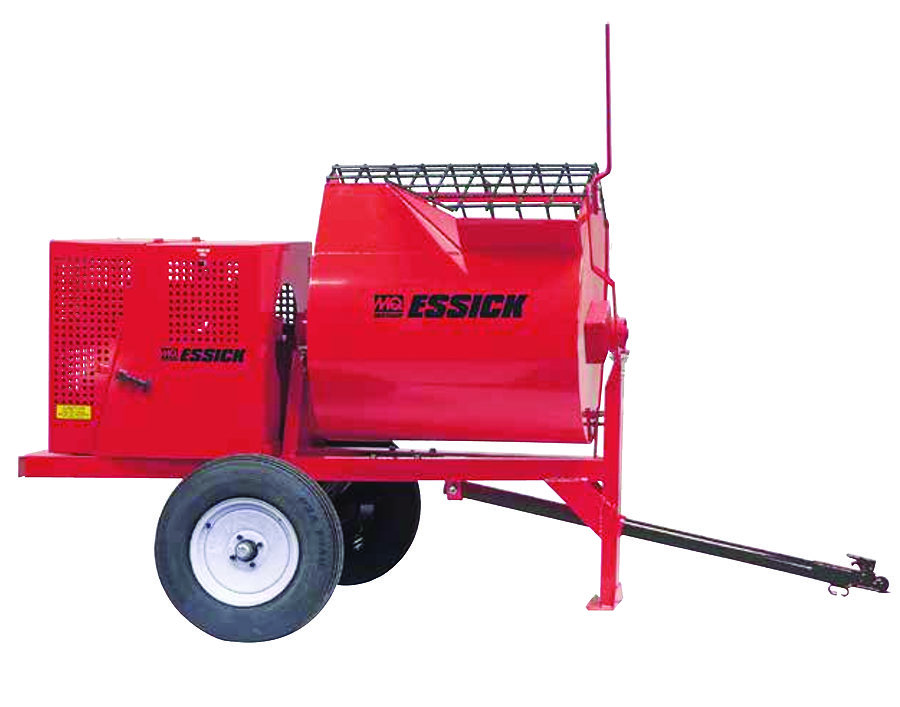

Essick 12 cu. ft. Mechanical Masonry Mixer

We carry Essick mortar mixers of various sizes and types. These are our highest quality mixers. They feature thick steel drums, sealed bearings, and Honda engines. This unit has a 12 cu. ft., 11 HP Honda-powered engine and handles 3.5 – 4 bags of concrete or mortar.

Essick 12CUFT Masonry Mixer Unit Specifications:

• Drive System Mech. Gearbox
• Drum Capacity 12 cu. ft.
• 339.8 L
• 3 1/2 – 4 bags
• Dump Type Manual
• Discharge Height 17 in 430 mm
• Drum Type Steel
• Drum Thickness 9 gauge
• Engine Cover Thickness 12 gauge
• Tire Size B78x13
• Frame Type Rectangular
• Paint Type Powder coat
• Power Source Honda GX340UT Special
• Notes: Heavy Duty Safety Chains included. All mixers available with loop coupler, 2″ ball coupler, or pin-type coupler.

Dimensions & Weights:

• Overall Length 105 in 2667 mm
• Overall Width 56 in 1422 mm
• Overall Height 60 in 1520 mm
• Overall Height w/Dump Handle 75 in 1910 mm
• Operating Weight 1040 lb 471.7 kg

Essick 12CUFT Masonry Mixer Engine Specifications:

• Engine Make/Model Honda GX390UT
• Start Method Recoil
• Engine Power 11.7 HP 8.72 kW
• Engine RPM 3600
• Fuel Type Gasoline

Click HERE for  more information and a detailed schematic with operating instructions.

Find all the Masonry Mixers we carry HERE.
