Mortar Mixer EM90SH8 9cf, Honda GX240 | Essick

Mortar Mixer EM90SH8 9cf, Honda GX240 | Essick

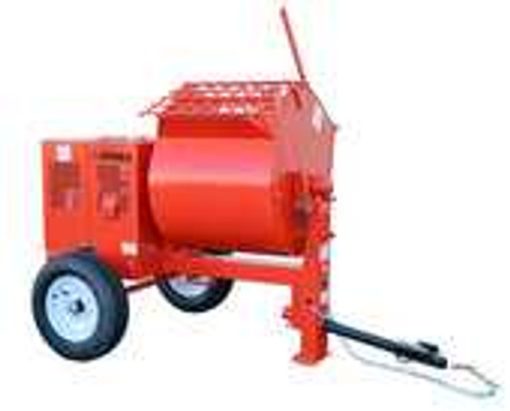

The Essick 9-Cubic Foot Mortar Mixer (Model EM90SH8) is a powerful and reliable machine that construction professionals choose when they need to get the job done right the first time. This high-capacity mixer handles up to 9 cubic feet (254.9 liters) of material. Therefore, it easily processes 2.5 to 3.5 bags of mortar or plaster, ensuring maximum productivity on large jobs. The unit features a dependable 8 horsepower Honda GX240 gasoline engine. Consequently, the recoil start engine provides the power and reliability necessary for continuous mixing operations.

Essick designed this mixer with longevity and minimal downtime in mind. It incorporates an innovative shaft seal system that requires no greasing. Furthermore, this low-maintenance feature saves significant time and effort on the job site. The drum is heavy-duty steel with a 10-gauge thickness. The engine cover is rugged 14-gauge steel and includes punched ventilation openings. Thus, this robust, tubular frame construction, protected by a durable powder coat finish, stands up to the heaviest daily construction use while ensuring engine cooling.

The mixer utilizes high tensile strength cast paddle arms, ensuring efficient and thorough blending of materials. With a discharge height of 21 inches, the manual dump system simplifies material offloading into wheelbarrows or staging areas. The mixer has an operating weight of 770 pounds. Moreover, the heavy-duty tires (Size B78x13) ensure the Essick 9-Cubic Foot Mortar Mixer remains mobile and easily maneuverable on job sites. In summary, this machine delivers a reliable combination of power, capacity, and durability for serious mixing work.

Detailed Specifications:

• SKU: EM90SH8
• Drum Capacity: 9 cubic feet (254.9 L)
• Bag Capacity: 2.5 – 3.5 bags
• Drum Type/Thickness: Steel (10 gauge)
• Engine Cover Thickness: 14 gauge (with punched ventilation)
• Drive System: V-belt
• Dump Type: Manual
• Discharge Height: 21 inches (530 mm)
• Frame Type: Tubular
• Tire Size: B78x13
• Paint Type: Powder coat (durable finish)
• Operating Weight: 770 pounds (349.2 kg)
• Overall Length: 98 inches (2489 mm)
• Overall Width: 50 inches (1270 mm)
• Overall Height: 59 inches (1498.6 mm)
• Overall Height w/Dump Handle: 77 inches (1960 mm)

Engine Specifications:

• Engine Make/Model: Honda GX-240 (Recoil Start)
• Engine Power: 7.9 HP (5.3 kW)
• Engine RPM: 3600
• Fuel Type: Gasoline
• Key Feature: Innovative shaft seal system requires no greasing
